1. Fully automatic adjusting for deviation of conveyor with Geared Motor System.
2. Pneumatic pressure adjustment for different Fabrics.
3. Adapted Longer infeed Lower Conveyor for ease of work.
4. Individual temperature controller for both Upper & Lower Heater.
5. Digital Temperature Controller for accurate and précised heating.
6. Compact design machine with storage box beneath machine.
7. Manual Pressure Gauge to accurate pressure.
8. Low Maintenance and long life.
9. Separate Display Panel easy to use.
10. Double Pressure Silicone roller for better effect ensures uniform pressure throughout the bonding area.
11. Seamless Conveyor Belt for better life and durability.
12. Auto Stop function when cooling off machine.
13. Adjustable Conveyor Speed to perform on various delicate fabrics.

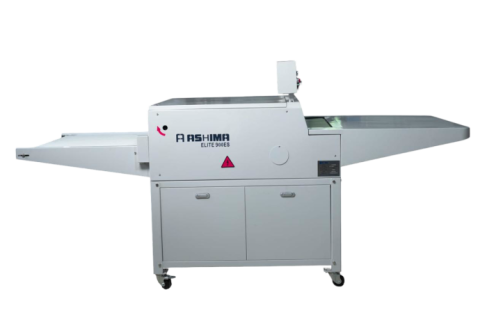

14. 900ES Model equipped with Off load Conveyor Belt.
|
Model |
AP-450ES |
AP-600ES |
AP-800ES |
AP-800ES |
|---|---|---|---|---|
|
Power Supply |
1P-220V |
1P-220V |
1P-220V |
3P-380V |
|
Heater |
4.5 Kw |
7.2 Kw |
9.8Kw |
13.2Kw |
|
Motor |
40W |
40W |
40W |
40W |
|
Max Temperatures |
195°C |
195°C |
195°C |
195°C |
|
Max Pressure |
5 kg/cm |
5 kg/cm |
5 kg/cm |
5 kg/cm |
|
Max Belt Speed |
6.7m/min |
6.7m/min |
6.7m/min |
6.7m/min |
|
Pressing Time |
5-20sec |
5-20sec |
5-20sec |
5-20sec |
|
Fusing Width |
450mm |
600mm |
800mm |
900mm |
|
Dimensions (L*W*H)mm |
1060*700*1230 |
1060*850*1230 |
1060*1050*1230 |
1260*1150*1230 |
|
Weight |
198 kg. |
235 kg. |
290 Kg. |
340 Kg. |
