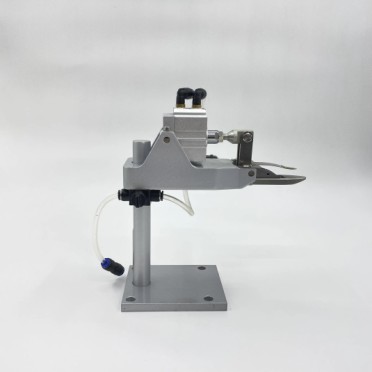

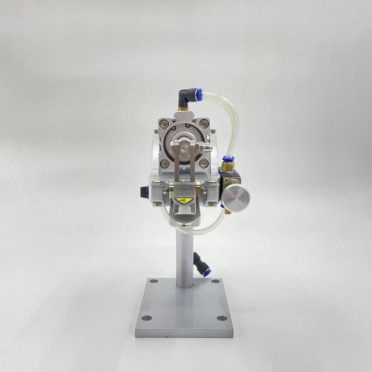

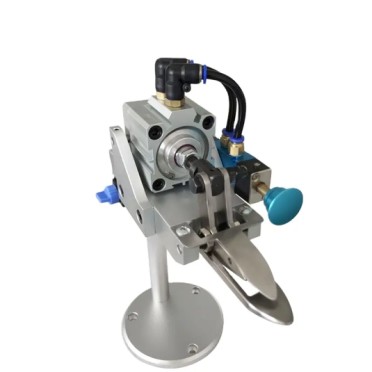

This machine is developed specially for loops trimming. Driven by pneumatic, just need to connect with air compressor, Load the pants or jeans or trousers or bags to the machine press the button will easily and simply finish the loop thread trimming.
Belt Loop Trimming Machine for Jeans Beltloop, Trouser Beltloop, Bags Ear loops. Trimming extra material after sewing or bar tacking the belt loop onto the jeans or Trouser waistband.
This machine of belt loop cutting tool is perfect for cutting extra fabric in ear loops.
Trimming Efficiency: 600-900 beltloops per hour against manual 300 beltloops per hour.
Cutting method: Pneumatic
1. Application: specially applied to trim extra ends of belt loop after sewing, simply get work done by touching button with the back of the right hand when feeding.
2. Cost saving: 2 to 3 times against manual scissor trimming.
3. Using a cylinder to supply power for trimming work, requiring a air compressor to support 0.35-0.45Mpa air pressure.
We apply non-electrical design, not only protect workers from electrical shock, but also ensure the long-term life span of tool service.
High Productivity, Low labors cost, Constant Trimming Result, Easy to service, Short training period. Save time and save money.
Belt Loop Trimmer is applied to cut belt loop to trim excess ends.
This kind of beltloop trimmer is designed to trousers, skirts, jeans, overcoats after sewing and washing.
|
Model |
Trimming Length: |
Working Efficiency: |
Air Pressure: |
Power Supply: |
Packing Size: |
Weight: |
|
AS-BLT411 |
35mm, 42mm |
800-900pcs/hour |
0.35-0.45Mpa |
Pneumatic |
43x25x18cm |
2.9KGS |
Application:
