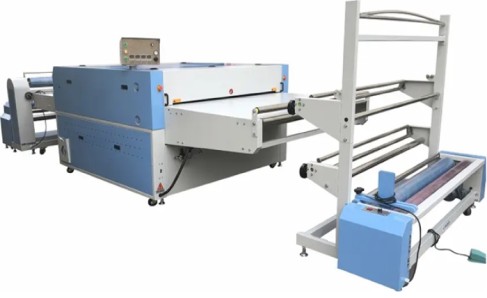

Features:

1.Continuous fusing system increases the productivity.
2.Equipped with the wheels for convenient mobility.
3.PCB and micro switch control the upper and lower belts automatically and extends duration of the belt.
4.Pressure rollers are made by silicone, which ensure the power of pressure giving is stable and equal.
5.Electronic temperature constant temperature control system, temperature accurately.
6.There are 9 heaters to distribute the heat evenly and can be used to all fabrics.
7.Equip with stronger vacuum system for cooling which can let the fabric in shape immediately.
8.Equipped with automatic cooling timing shutdown system.
9.Pneumatic double roller pressing, the pressure of which can be adjusted separately.
10.Special-designed clean rod to clean the belt completely, and it is easy for replacement once the rod gets dirty.
11.With frequency conversion mechanic to control speed, running smoothly and more energy saving.
12.Optional:Basket of cloth/Automatic feeding machine; Winding machine/Infrared edge cloth rolling machine.

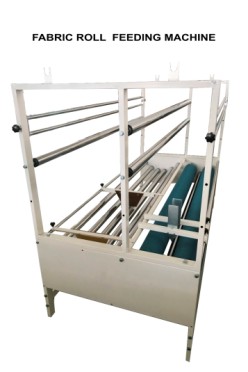

Ashima Series Fabric Feeding Machine

There are 2 sets of cloth rack for collecting cloth, which is easy to operate and saves time and effort.

Technical Parameters :

Fabric Roll Width      -1600/1800

Voltage                   - 1P/220V 50Hz
Power                     - 180W
Appearance size         -1900*1000*1000

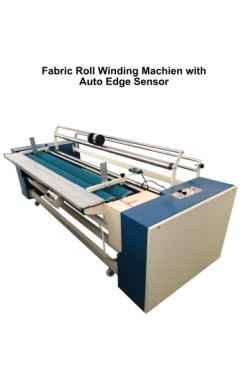

Fabric Winding/Unwinding  Feed Device

1.This machine equipped with edge control system to ensure the fabric rewind neatly.
2.Equiped with mechanical counter to ensure the measurement precisely, more accurately.
3.With fabric rolling tension adjustment.
4.With movable wheel for moving easily.

Techncial Parameters :

Machine Width            : 1600/1800
Power                       :220v50Hz
Power                       :750W
Opposite side             : U Type Infrared Sensor for Fabric Edge guide control

Appearance size         : 2730*1300*980mm (L*W*H)
