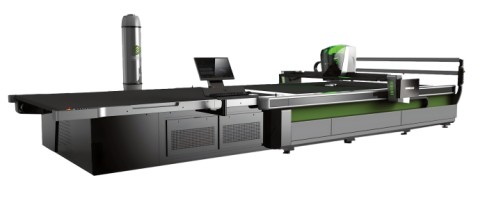

Automatic CNC Oscillating Knife Multilayer Fabric Cutting Machine

  • Model: AS-MLC1725
Product Brochure Enquire Now

Features:

The Automatic CNC Fabric Cutting Machine is a high-precision, computer-controlled cutting system designed for efficient and accurate cutting of multilayered fabric stacks. Equipped with an auto-feeding and receiving conveyor system, this machine ensures seamless material handling, reducing manual intervention and enhancing productivity.

Key Features:

1.CNC Precision Cutting: Advanced computer numerical control ensures high-speed, accurate cutting of complex patterns with minimal material waste.
2.Multilayer Fabric Handling: Capable of cutting multiple fabric layers simultaneously, optimizing production efficiency for bulk orders.
3.Auto-Feeding System: Automated fabric feeding mechanism ensures continuous operation, reducing downtime and labor costs.
4.Receiving Conveyor: Integrated conveyor belt automatically collects cut pieces, streamlining workflow and improving safety.
5.User-Friendly Interface: Intuitive touchscreen control panel for easy pattern loading, adjustments, and real-time monitoring.
6.Versatile Cutting Tools: Compatible with various cutting methods (oscillating knife, drag knife, ultrasonic, or laser) to suit different fabric types.
7.High-Speed Operation: Optimized for industrial-scale production, delivering consistent quality at maximum speed.
8.Durable Construction: Robust frame and high-quality components ensure long-term reliability and minimal maintenance.


Applications:

Ideal for apparel manufacturing, automotive textiles, upholstery, technical textiles, and composite material industries, this machine enhances cutting accuracy and efficiency for large-scale production.

Benefits:

✔ Increased Productivity – Automated feeding and unloading reduce manual handling.
✔ Precision & Consistency – CNC-controlled cuts ensure uniformity across multiple layers.
✔ Cost-Effective – Minimizes fabric waste and labor requirements.
✔ Flexible & Scalable – Adaptable to various fabric types and production demands.

This state-of-the-art CNC fabric cutting machine is the ultimate solution for manufacturers seeking speed, precision, and automation in fabric processing.

Technical Parameters

Product Model

AS-MLC1725

AS-MLC2030

AS-MLC2330

AS-MLC2630

Customizable Model

Cutting Range (W*L)

1.7m*2.5m

2m*3m

2.3m*3m

2.5m*3m

Size can be customized

Production Capacity

        650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour

Cutting length

No limitation with automatic fabric feeding system

Cutting Thickness

0.1mm—110mm (compressed fabric, after vacuum absorption)

Spreading length

Maximum 50m with spreading table

Maximum Speed

0-70m/min

Cutting precision

± 0.1mm

Total Power

18KW

Power Supply

220V/380V , 50/60HZ

Cutting style

Straight Knife Continuous Up-down Cutting

Knife granding

Automatic spin double-sided sharpening device

Blade cooling

Automatic temperature control air-cooled system

Adsorption method

Frequency conversion vacuum constant pressure control mode

Compressed air

550KPa , 160L/min

Operating panel

Touch control panel

Operating System

Windows OS

System Features

Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines), residual cloth cutting

File Format

cut , dxf , plt , iso ,pdf , ggt, gbr, hpgl

Applied Materials

Fabric, Textiles, Lace, Car interior,Fur,Leather,Denim,Calico,PVC,Foam,Cardboard,Acrylic,Curtain,Carpet,,Gesket，etc.
