Ashima Machinery

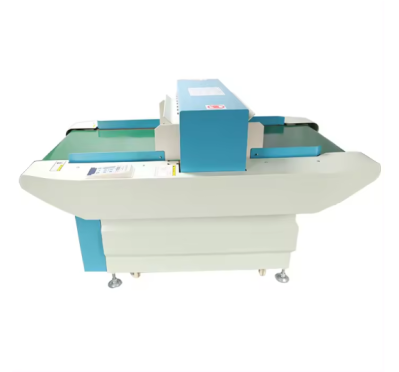

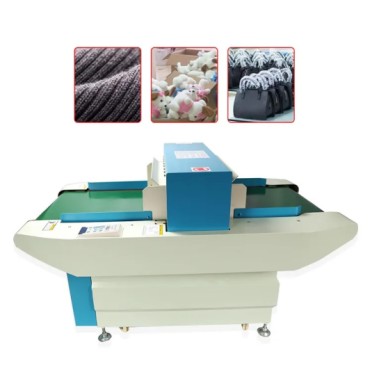

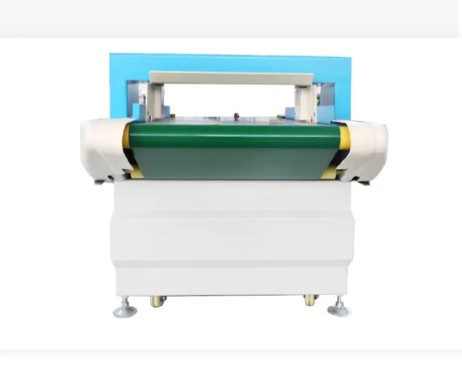

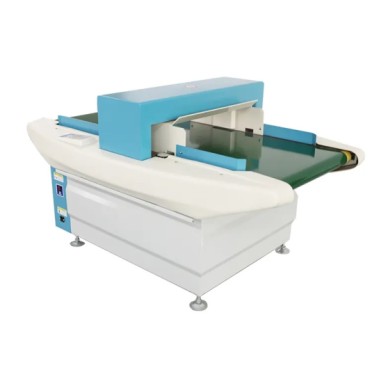

Conveyor Type Needle Detector Machine AS-760CE Series

Model: AS-760CE-100/200/300

Product Brochure Enquire Now

Features:

1.Dual-frequency integrated circuit, cross magnetic induction detection, bring with higher accuracy, reliability and stability.

2.Equipped with Automatic control system and uses special magnetic sensitive materials and unique technology, the detection accuracy of the needle detector is particularly high, and the exact needle-breaking position is displayed into detection zone.

3. Detection Sensitivity can be adjusted and real-time signal display.

4.Automatic detection, automatic induction, automatic stop when no detection is needed, 0-10 sensitivity degree adjustment, when there is a broken needle, the conveyor belt automatically stops and returns backwards.

5.With counting function, it can count the number of qualified or defective products.

6.It has three alarm modes: sound effect, light alarming & Conveyor Belt return or Stop.

Technical Parameters

Model	AS-760CE-100	AS-760CE-200	AS-760CE-300
Detection method	Magnetic induction	Magnetic induction	Magnetic induction
Sensitivity adjustment	1-10 Degree	1-10 Degree	1-10 Degree
Detection sensitivity	0.8/1.0 mm Iron Ball	1.5 mm Iron Ball	2.5 mm Iron Ball
Alarm method	Beep, Light, Belt Stop	Beep, Light, Belt Stop	Beep, Light, Belt Stop
Detection width	600mm	600mm	600mm
Detection height	100mm	200mm	300mm
Power supply	220V 50Hz	220V 50Hz	220V 50Hz
Power consumption	120W	120W	120W
Weight	250kg	280Kg	320Kg
Dimension(L×W×H)	16001050950mm	160010501060mm	160010501160mm

No More Broken Needle in Products

Conveyor Type Needle Detector Machine AS-760CE Series

Features:

Technical Parameters

Application
